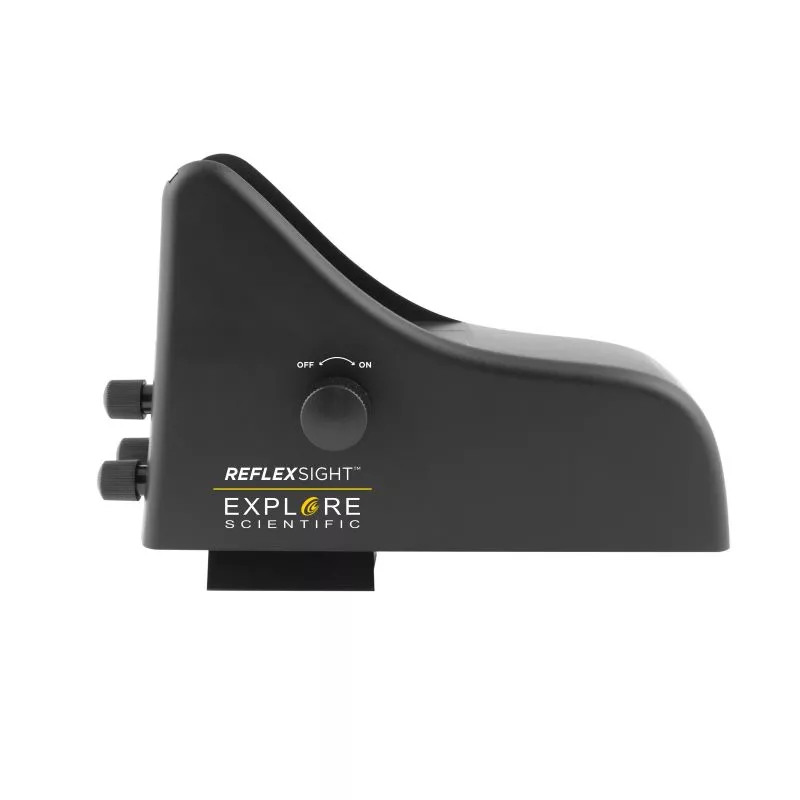

Explore Scientific ReflexSight LED projection viewfinder

The ReflexSight is a practical alternative to classic optical viewfinders and illuminated dot viewfinders. You can see the entire starry sky without magnification and not just a small section of the sky.

    ReflexSight LED projection viewfinder with deep red target circles
    Fits standard Vixen-style dovetail finder shoes
    There is a ¼ inch x 20G photo tripod female thread in the base
    For mounting using piggyback camera adapters
    Operates with standard AAA batteries (not included)
    Multi-dot target circle pattern in standard circle diameters 4.0 degrees, 2.0 degrees and 0.5 degrees
    Smooth body without sharp corners, prevents snagging

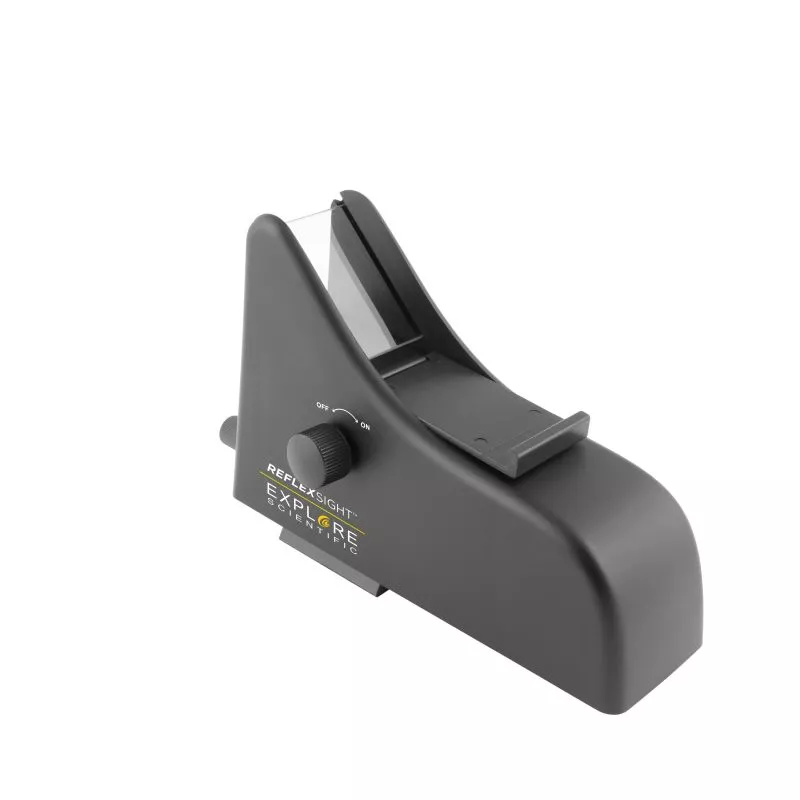

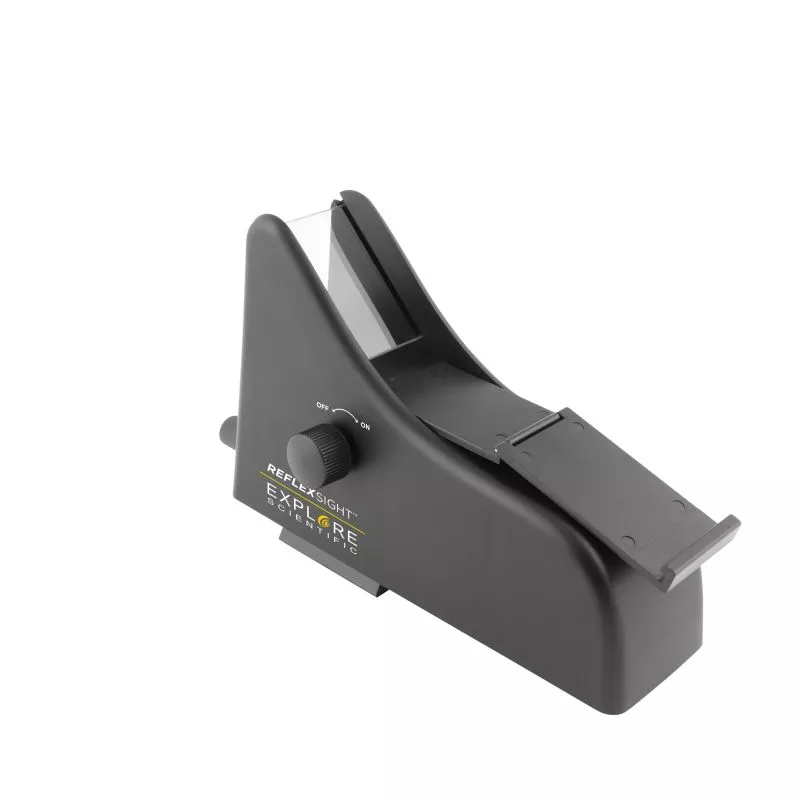

    Comes complete with a cover for the optics
    Compact design and easily accessible battery compartment

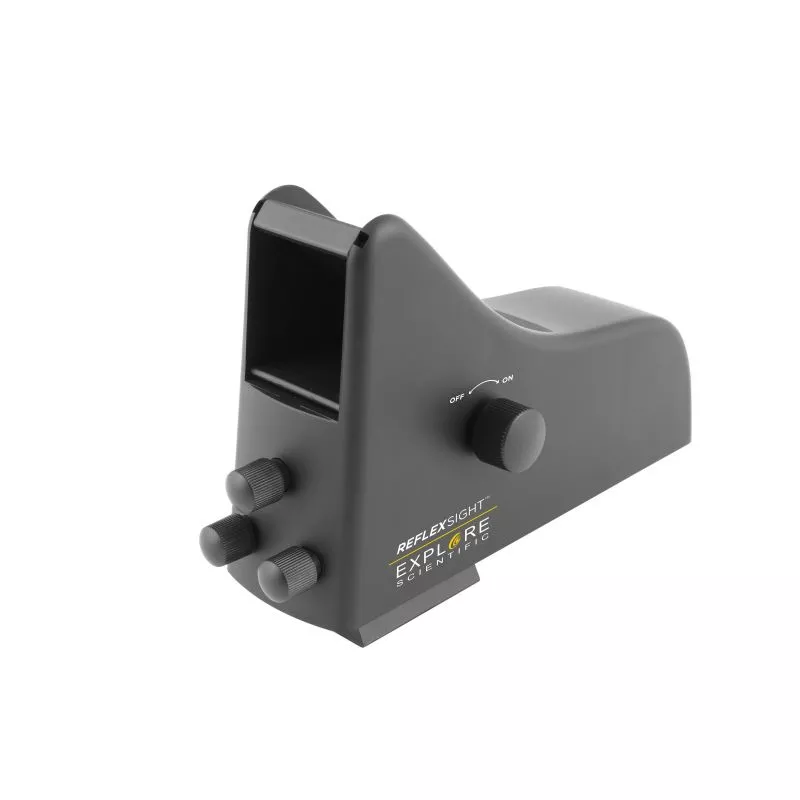

    Large, continuously adjustable brightness control and tool-free three-point parallax adjustment knobs with knurls



The Explore Scientific ReflexSight™ LED Projection Viewfinder combines proven functionality with versatility while offering enhanced performance features.

Looking through this viewfinder gives the appearance of multiple deep red target circles projected against the sky.

Both eyes can be used to quickly and easily adjust the desired objects in the telescope using visible stars using “star hopping”.  The Explore Scientific ReflexSight™ is a viewfinder without a magnification factor and is particularly suitable for use on amateur telescopes. The big advantage is that you can see the entire starry sky without magnification and not just a small section of the sky.

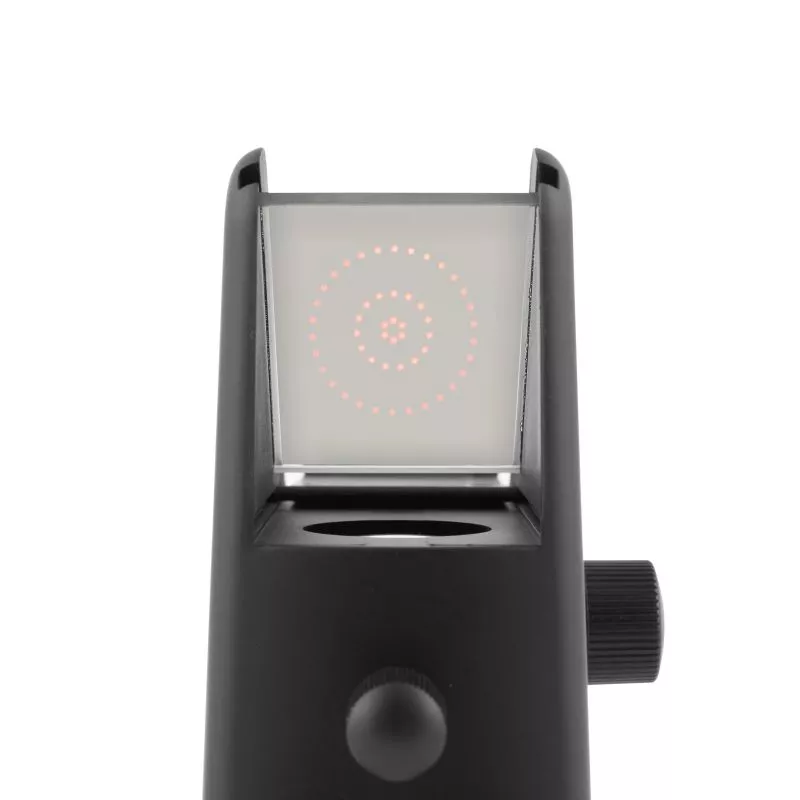

New "Multi-Dot" target circle pattern in standard circle diameters of 4.0 degrees, 2.0 degrees and 0.5 degrees, which prevents stars from being blocked in the field of view.

Projection screen size: 55 x 35 mm. Fits standard "Vixen-Style Dovetail" finder feet, allowing the user to attach this finder to almost any telescope without modifying the telescope itself. A ¼ inch x 20G thread adapter (photo tripod thread) is built into the viewfinder base, with which the viewfinder can be attached to a variety of telescopes using piggyback camera adapters with a photo tripod threaded hole.

Functional design and intuitive operation.

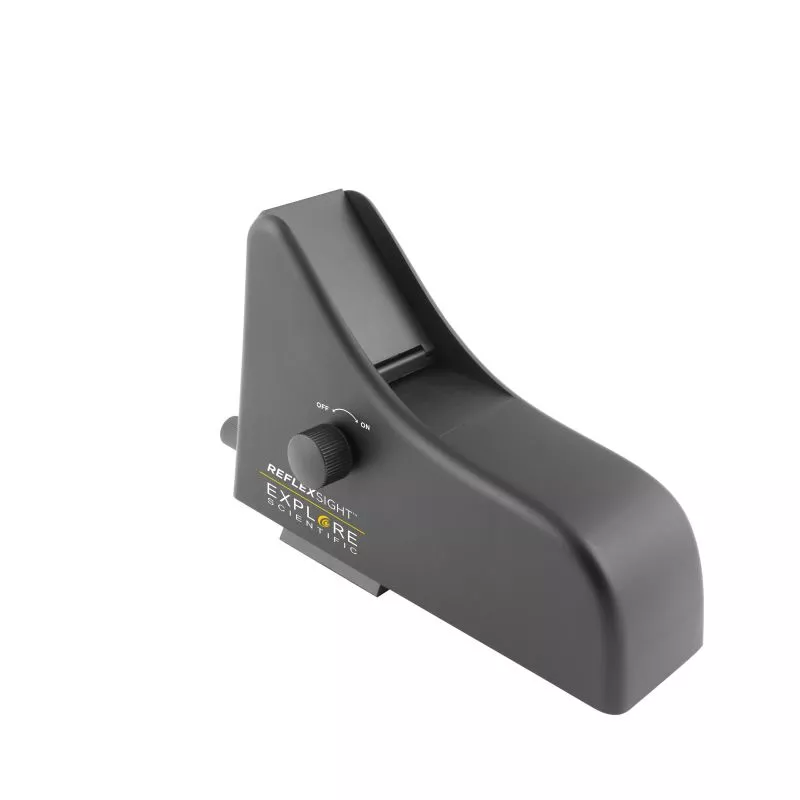

The smooth housing without sharp corners prevents it from getting stuck. Easily accessible battery compartment. Comes complete with a cover for the optics. To operate the energy-saving LED lighting, 2 standard AAA alkaline batteries (not included) are required. The low power consumption of the LED lighting ensures a long operating time. Large, infinitely adjustable brightness controller with a smooth head and knurled, which can also be easily operated with gloves. Click switch to turn off completely. Rear-facing, tool-free, three-point knurled parallax adjustment knobs that can be easily operated even when wearing gloves. Coated lens, for maximum contrast and transmission on the projection surface.


The extremely compact design allows it to be mounted on small and light telescopes.

CHARACTERISTICS

    ReflexSight LED projection viewfinder with deep red target circles
    Standard circle diameter 4.0 degrees, 2.0 degrees and 0.5 degrees
    Projection screen size: 55 x 35 mm
    Fits standard Vixen-style dovetail finder shoes
    There is a ¼ inch x 20G photo tripod female thread in the base
    Mounting possible using piggyback camera adapters etc
    Operates with standard AAA batteries (not included)
    Smooth body without sharp corners, prevents snagging
    Comes complete with a cover for the optics
    Compact design and easily accessible battery compartment
    Large, continuously adjustable brightness control with knurled knob
    Click switch to turn off completely
    Tool-free three-point parallax adjustment knobs with knurled
    Can also be mounted on small and light telescopes



SCOPE OF DELIVERY

    ReflexSight LED projection viewfinder

Technical data
GENERAL TECHNICAL DATA
Color black
material

    plastic
    metal

DIMENSIONS & WEIGHTS
Total length 180 mm
Total width 47 mm
Total height 127 mm
Net weight (without accessories) 249 g
