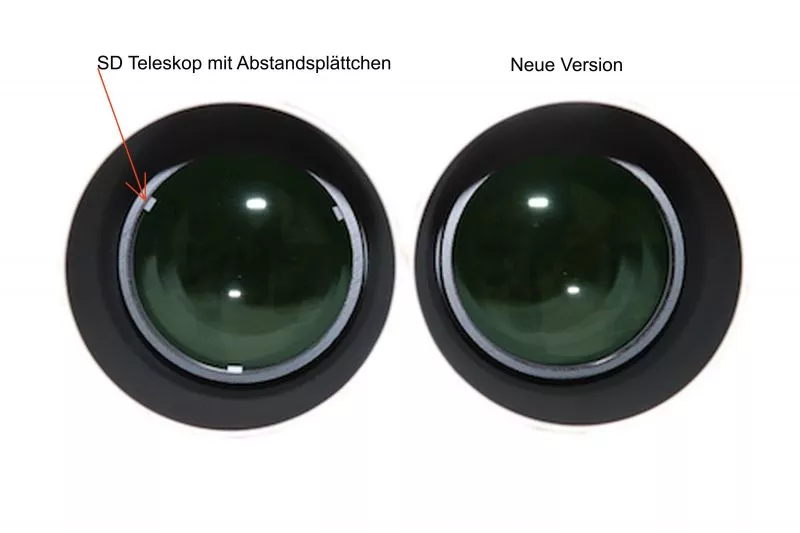

The new Vixen SD115SII no longer uses spacer plates, which leads to significantly better image quality, especially with bright stars. This means that spikes on the stars that would otherwise have been created by the spacer plates can no longer be seen in photographs. You will also be amazed when you look at the moon or the brighter planets and can observe the lunar craters in razor-sharp detail and with extremely high contrast. Also consider the ringed planet Saturn or the cloud bands on Jupiter. But of course brighter deep sky objects such as the Orion Nebula or the Andromeda Galaxy can also be impressively observed.

In combination with the new optional SD Reducer HD Kit or SD Flattener HD (not included), this refractor telescope enables illumination with a 44 mm image circle for full-frame SLR cameras.

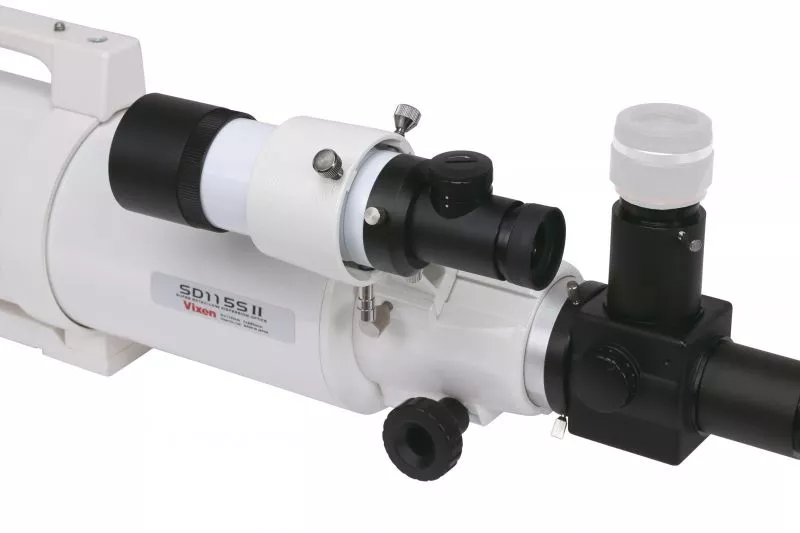

The older ED81SII, ED103S, ED115S refractors were originally designed for the visual observer and the photographer with APS-C cameras. However, the new SD series is also optimized for the use of full-format cameras through the use of new inner panels. The large 60 mm focuser also allows heavy cameras to be attached without tipping. Furthermore, the included folding mirror allows comfortable observation even in unfavorable observation situations and also offers a T2 thread for connecting a DSLR camera. This means you can observe in degrees or at a 90° angle. The carrying handle attached to the tube clamps ensures a secure hold when transporting the telescope.

CHARACTERISTICS


    Objective lens: D=115 mm, multi-coated/fully coated
    2-lens SD apochromat without spacer plates
    There are no more spikes on the stars
    Focal length: 890mm (f7.7)
    Resolution and cutoff size: 1.01 arcseconds; 12.1
    Light gathering capacity: approx. 270x more than the human eye
    Dimensions and Weight: 125mm dia x 930mm; 4.4 kg without accessories
    Finder scope: 7x50 illuminated
    Adapters and connections: thread 60 mm, 50.8 mm and 31.7 mm receptacle, thread for T-ring
    Connection: 50.8 mm and 31.7 mm receptacle with flip mirror
    Photography: Primary Focus and Eyepiece Projection


SCOPE OF DELIVERY


    Refractor SD115SII telescope
    Pipe clamps with dovetail
    Dew cap
    Flip mirror folding mirror
    Carrying handle
    Dovetail rail
    7x50 viewfinder

Technical data
Area of ​​application
Area of ​​application

    Deep sky observation
    Deep sky photography
    Moon observation
    Moon photography
    Planetary photography
    Planetary observation

Target group
Target group

    Advanced
    Specialists and research
    visual observers

Product family
Refracting telescope product family
OPTICAL FEATURES
Optical design Apochromatic refractor
Maximum recommended magnification 230
ED glass ✓
Material front lens or correction plate Ohara Japan FPL-53 ED glass
Mirror/lens diameter	115mm
Focal length 890mm
Aperture ratio 7.7
Resolution power 1.01 arcseconds
Visual stellar limit magnitude (approx., mag) 12.5
Color of the coating is green
Finder scope 7 x 50
GENERAL TECHNICAL DATA
Tube material aluminum
Color white
Connection thread type 60 mm
Transportability good
Eyepiece mount plug diameter 50.8 mm
Dust cover for front lens and eyepiece socket
DIMENSIONS & WEIGHTS
Total length 930 mm
Total width 125 mm
Total height 125 mm
Net weight of optical tube (including accessories) 6.3 kg
