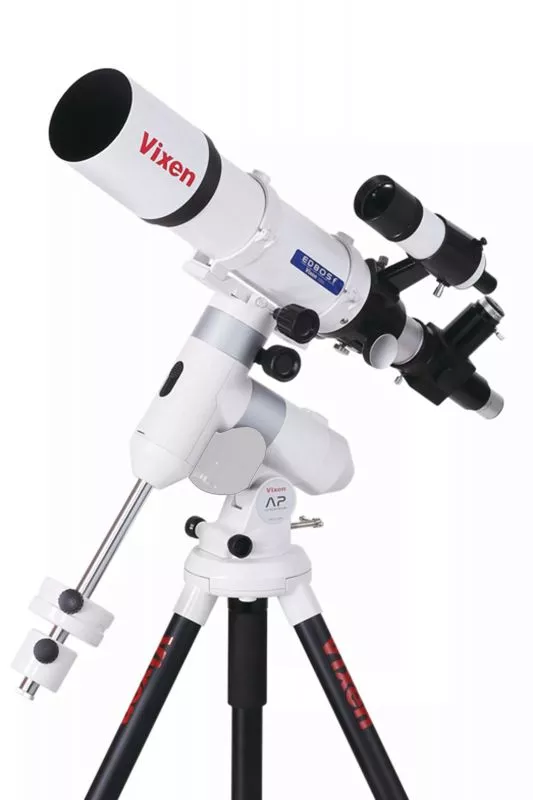

Vixen AP ED80Sf telescope set

Telescope set with high-quality apochromatic refractor, travel mount with manual fine adjustment, tripod and 2 eyepieces

Dismountable travel mount with manual fine adjustment
The modular system can be dismantled in just a few steps
Very light, easy to transport and perfect for air travel
Built-in slip clutch mechanism
Ideal for air travel and quick deployments
High-quality 80 mm ED refractor for high demands
Very color-pure, sharp images with high contrast
Motor set in RA and DC axis can be optionally retrofitted
Total weight: 14.3 kg

Product information "Vixen AP ED80Sf telescope set"
This complete telescope set with 80mm ED refractor telescope, AP mount, tripod and eyepieces contains all the necessary accessories to get started with your hobby right away.
The telescope set can be disassembled in just a few steps and is therefore ideal for travel. The apochromatic ED80Sf refractor will impress you with its color purity and high contrast.
With its bright f7.5 aperture ratio, the ED80Sf telescope meets the high demands of visual observers and astrophotographers. The optical system collects the entire spectrum of light exactly at one point and is therefore almost free of chromatic aberration. The colors are reproduced neutrally and with very high contrast. The high contrast and impressive sharpness will convince you, especially when observing the moon and planets.
You will be amazed when you look at the moon or the brighter planets and can observe the lunar craters in razor-sharp detail and with extremely high contrast. You can also look at the ringed planet Saturn or the cloud bands on Jupiter. But of course brighter deep sky objects,
such as the Orion Nebula or the Andromeda Galaxy, can also be impressively observed.
The folding mirror supplied allows you to observe without getting tired and also offers a T2 thread for connecting a camera. The telescope is safely protected from dust and transport damage in the aluminum case.

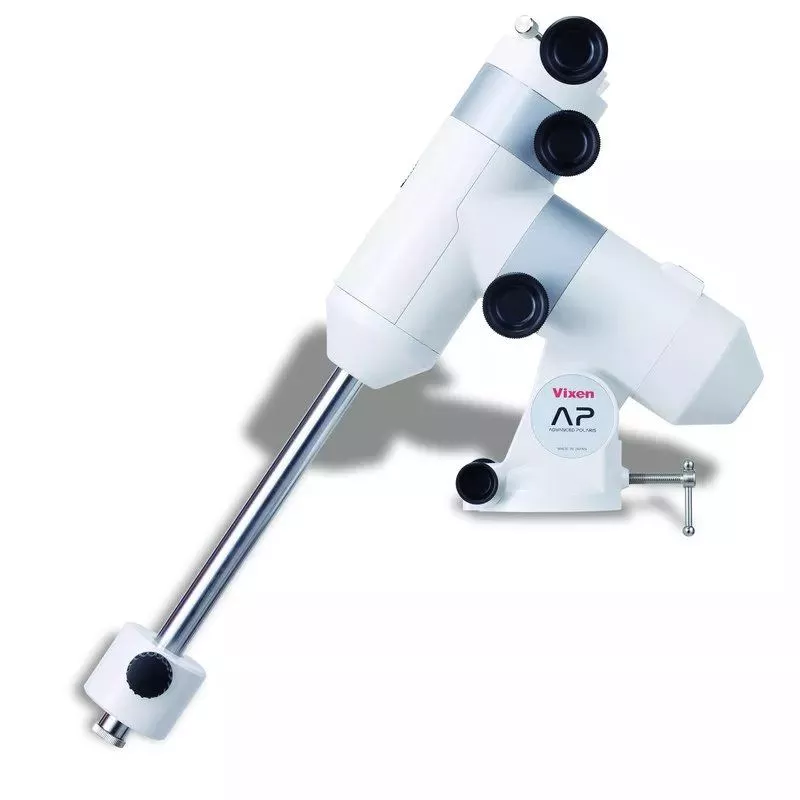

AP mount

The AP mount enables your telescope to be held securely and stably. In addition, it can be quickly adjusted to the target object using the slip clutch mechanism. This ADVANCED POLARIS mount is suitable for beginners as well as for experienced observers who want to use a lightweight travel mount. A large selection of accessories is optionally available.

Stylish design
The AP mount is characterized by an extra-smooth surface without protrusions.
Simply place your telescope on the mount and move it to your observation object without having to loosen clamps or similar.

Fast polar alignment
The slip clutches make aligning the telescope to your target object much easier, as you no longer have to search for locking clamps in the dark. With an optional polar meter (not included), you can find the celestial pole even if it is obscured by trees or houses.

Optional polar finder scope can be retrofitted
The modern polar finder scope enables a new type of polar alignment. Simply adjust the stars visible in the crosshair pattern to the true sky. This is done using 3 reference stars. The polar finder is illuminated for orientation and switches off automatically after 3 minutes to save the batteries.

Optional power supply can be retrofitted
The RA and DEC motor modules work with four AA alkaline, Ni-MH or Ni-Cd batteries. The RA motor module is equipped with a USB micro-B port for external power supply. For longer observations, you can use a USB power pack or car charger cable.

Optional STAR BOOK ONE controller can be retrofitted
The STAR BOOK ONE is a versatile yet easy-to-use controller that is used to track in the RA and DC axes at different speeds. The tracking options are designed for time-lapse with the sidereal speed, lunar speed, solar rate and many more. In addition, the controller offers many useful functions such as play compensation, autoguider port, PEC and the built-in red LED light. The STAR BOOK ONE controller is intended for the AP-SM mount and is an integral part of the RA motor module.

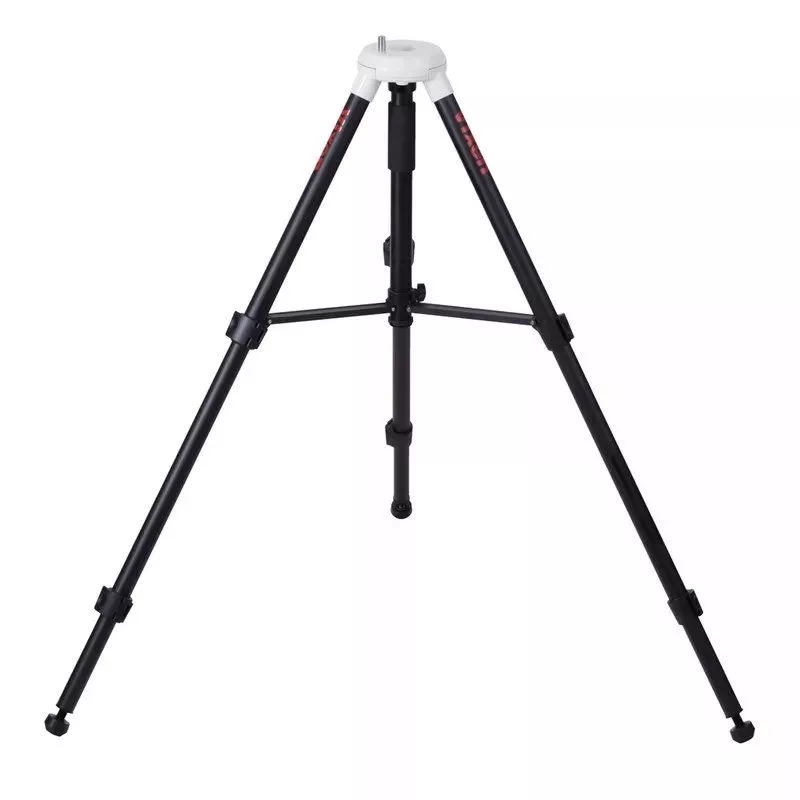

APP-TL130 tripod

The compact APP-TL130 tripod can be adjusted between 60 and 130 cm and combines the portability of the photo tripod with the strength of the astronomical telescope tripod. You can switch between rubber and metal spikes so that the floor is not damaged even when used indoors.

FEATURES

Ideally suited for air travel
Dismountable travel mount with manual fine adjustment
Very light and portable
Motor set can be retrofitted
Photographic load capacity of the mount: 6 kg
High-quality ED refractor with 80 mm lenses
Very high sharpness and contrast
Total weight: 14.3 kg

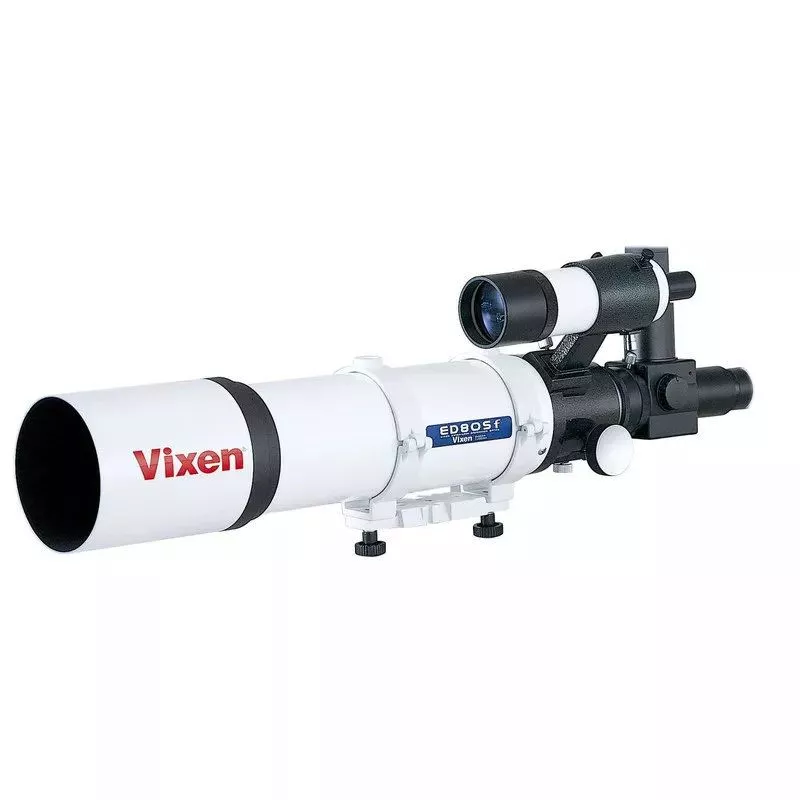

Specifications ED80Sf telescope:

Objective: 80 mm, ED-2 lens apochromat, multi-coated
Focal length: 600 mm (F7.5)
Resolution and limiting magnitude: 1.45 arc seconds; 11.3
Light gathering power: 131x
Dimensions and weight: (OD) 100 mm x (L) 570 mm; 3.4 kg
Finder: 9x50 mm finderscope
Adapters and connections: 42 mm for T-mount and 31.7 mm with folding mirror; 50.8 mm optional

SCOPE OF DELIVERY

ED80Sf ED refractor telescope

AP mount

APP-TL130 tripod

Folding mirror

9x50 finder scope

Tube clamps

Dovetail mount

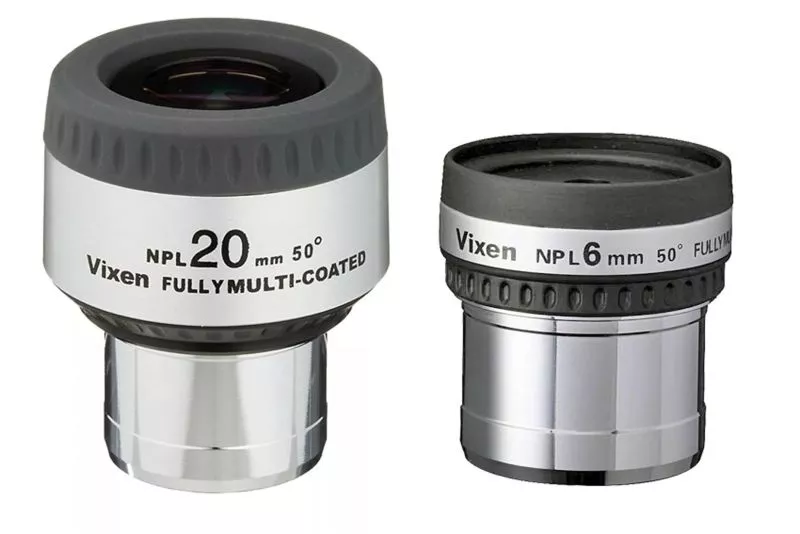

2 eyepieces: NPL20, NPL6
Aluminum case
Material: aluminum
Product family [telescopes]: lens telescope
Color: white
