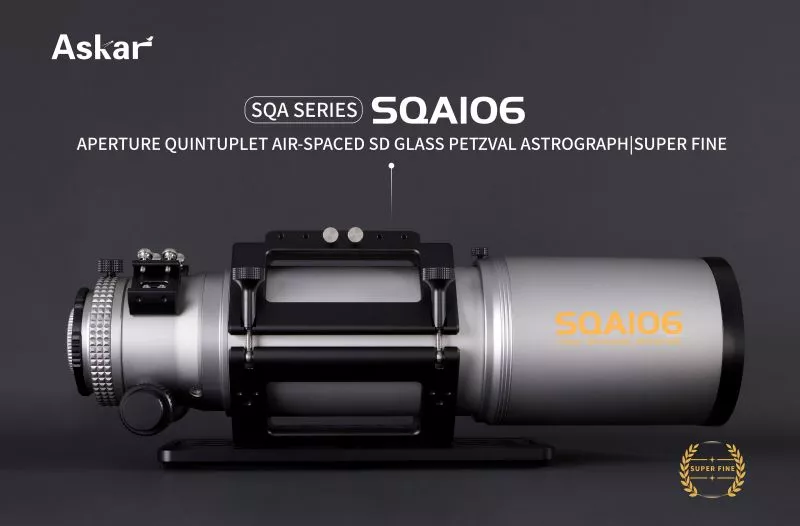

Askar SQA106 106mm/ f/4.8 / 509mm focal length, APO apochromatic refractor (quintuplet)


The powerful apochromatic refractor Askar has been specially developed for astrophotography. Here are some details:

- Fixed focal length: 509mm
- Aperture: 106mm
- Fixed aperture: f/4.8
- 2 SD glasses for perfect color correction
- Petzval design for field correction up to full format
- Connection thread on the camera side is M48, M54 and M68 included
- Suitable for DSLR, mirrorless system cameras and astro cameras
- The camera can be rotated thanks to the manual rotator

Connecting the camera to the SQA106:
Adapters for M48x0.75, M54x0.75 and M68x1 are included on the camera side. The working distance is flexible 40-70mm (55mm recommended) from the camera connection thread. This means that all common photo adapters fit the lens and the camera is automatically at the correct distance, regardless of whether you want to adapt a DSLR, mirrorless system camera or astro camera. There is enough room for e.g. an off-axis guider, rotator, filter wheel, etc.

Focal length: 509mm
Light intensity: f/4.8
Aperture: 106mm

Focusing: manual focus R&P with sub-set
Camera connection: M48x0.75, M54x0.75, M68x1
Working distance: 40-70mm (55mm recommended)
Optical system: Petzval system with built-in field flattening
APO lenses: 2xSD element for perfect color correction
Suitable for: cameras with sensors up to 55mm diagonal
