HIGH TORQUE. HIGH PRECISION. HIGH PORTABILITY – CARBON FIBER WAVE TRIPOD INCLUDED!!

Leveraging the expansion wave design with its high torque and compact design, Sky-Watcher's WAVE mounts provide high precision and performance in an affordable and portable package. With exclusive features not found on any other expansion wave mount, the new WAVE series is a serious update and improvement to Sky-Watcher's already immensely popular family of astronomy mounting platforms.

The Sky-Watcher WAVE-150i is based on a voltage wave or harmonic gear design. This drive design offers a number of advantages, including high-precision tracking with minimal backlash for long exposure shooting and a compact design with a remarkable payload-to-weight ratio for the use of various devices while providing convenient transport.

The WAVE-150i offers a payload capacity of 15kg (25kg with optional counterweight kit) while being incredibly compact and lightweight. Sky-Watcher's WAVE mounts also feature EQ and AZ tracking modes with RA and DEC home positions, dual-fit saddles, 0-90º latitude range, Wi-Fi and Bluetooth functionality, RA Braking when the power is off, as well as a red backlit latitude indicator and spirit level to make your setup routine much easier.

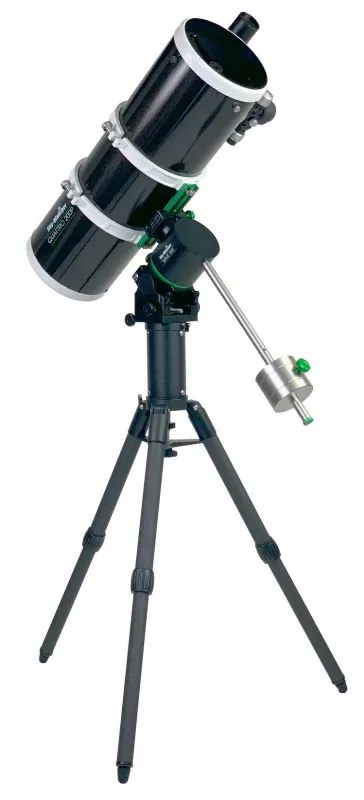

*Please note that the counterweight set, extension tube and telescopic OTA shown in the product photos are not included*

    Working mode: Equatorial or alt-azimuth
    Comes with a single dual-fit 45mm/75mm saddle.
    Carbon fiber WAVE tripod included
    Bracket weight: 5.8 kg
    Payload capacity (without counterweight): 15kg
    Payload capacity (with counterweight): 25kg
    Counterweight kit, extension tube and tripod sold separately
    Transmission mode: Belt driven stepper motor with harmonic reducer
    RA Harmonic Specification: 17-100. DEC Harmonic Specification: 14-100
    Highest speed: 2400x (10º/second)
    Gear reduction ratio: 300:1 (both axles)
    Latitude adjustment range: 0°-90°

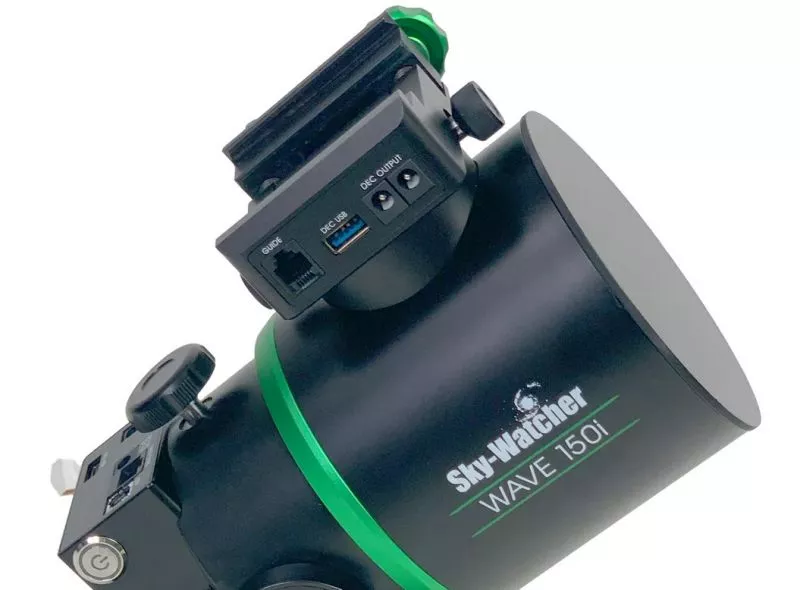

    Connection sockets: USB-B, autoguider, SynScan handset and power input
    Cable management function
    RA-Lock function (for easy counterweight installation)
    Controllable via WiFi and Bluetooth or optional SynScan handset (sold separately)
    Compatible with the Sky-Watcher SynScan PRO app for Windows, iOS and Android devices.
    Also compatible with Stellarium, SkySafari & Cartes du Ciel and third-party drivers or software such as ASCOM or INDI
    Power requirement: 12V, 2A DC
    RA power-off braking function
    RA and DEC home position and limits function
    Practical red LED lighting for latitude scales and spirit level
    Precise CNC machined body
    Carry bag with foam lining
