This telescope is checked by us before delivery and in any case pre-adjusted. The focuser is set.


How do we adjust: "About us"

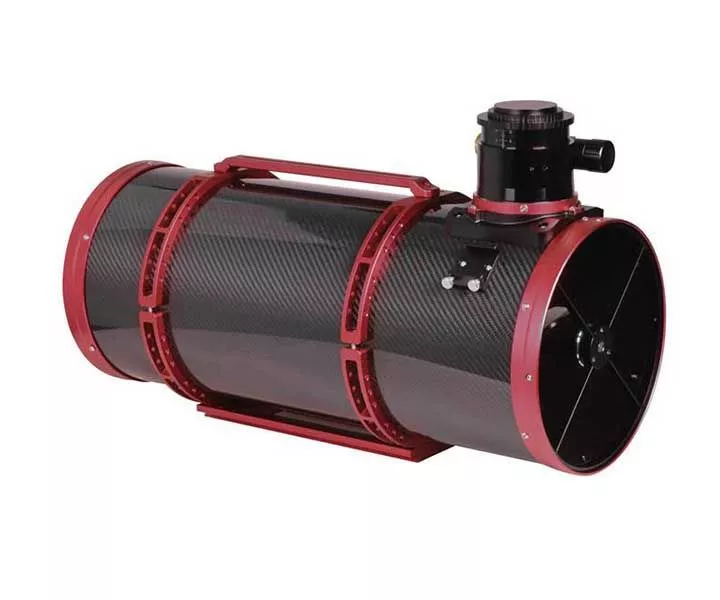

 TS-Optics 200mm f / 3.2 640mm Parabolic Newtonian Astrograph Carbon

The 200 mm f / 3.2 Newtonian Astrograph with integrated corrector is corrected for astrophotography with full format sensors.

♦ 200 mm opening

♦ Effective focal length 640 mm

♦ Effective opening ratio f / 3.2

♦ Full correction and illumination up to 44 mm in diameter

♦ Carbon tube for optimal stability - keeps the focus even when the temperature changes

♦ 3 "pinion focuser with reduction and M48 thread connection

♦ Working distance 55 mm from the M48 thread

♦ Weight of the optical tube with clamps and rails only 8 kg

♦ Including CNC clamps, handle and Losmandy Level prism rail and 1.25 "adapter

♦ Robust transport case for safe storage and transport




TS 200 mm f / 3.2 parabolic Newtonian astrograph
The compact and portable Newtonian astrograph has been developed for the dedicated astrophotographer who wants a bright telescope with very good sharpness over a large field of view. The Astrograph has been developed for modern sensors with high resolution and large diameters up to full format.

Thanks to the extremely fast aperture ratio of 1: 3.2, you can take very deep pictures of deep sky objects in just one night, with very high magnification. It is possible to take pictures of extensive fog objects or galaxy clusters.

Features of the 200mm f / 3.2 hypergraph:

♦ Parabolic primary mirror with 200 mm aperture f / 3.8
♦ 3 "corrector installed in the focuser with 0.85 reduction
♦ Secondary mirror with 90 mm diameter (small axis) for full illumination up to full format
♦ Large 3 "rack extension with reduction and M48 adapter
♦ Tilting option on the focuser
♦ Adjustable and stable holder for primary mirror and secondary mirror

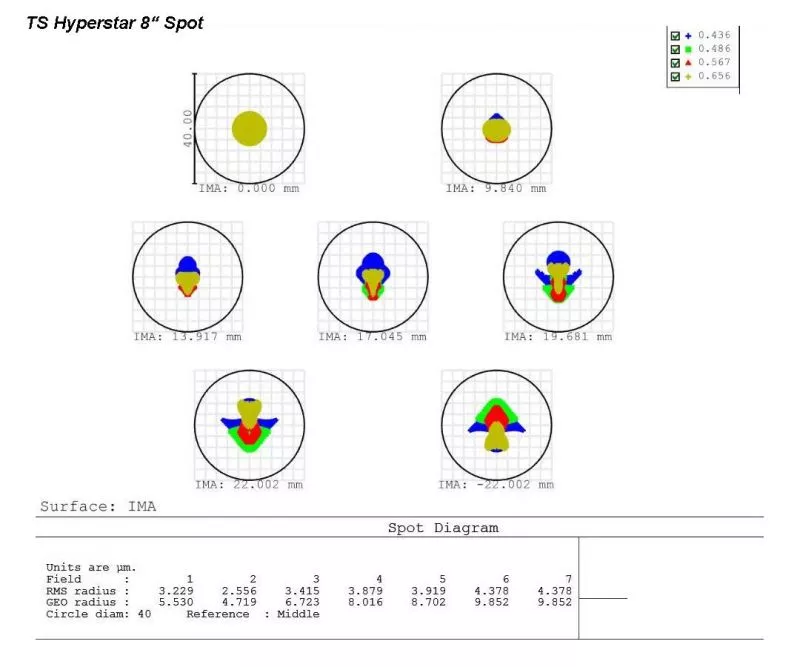

♦ Fully illuminated and corrected image field with a diameter of 44 mm
♦ Working distance 55 mm from the M48x0.75 thread




Opening: 200 mm
Focal length: 640 mm effective
Aperture: f / 3.2
Main mirror: Parabolic main mirror with 760 mm focal length
Mirror support: PZ33 (similar to Pyrex)
Corrector: 4-element coma corrector 0.85x
Secondary mirror: D = 90 mm minor axis
Illuminated and corrected image field: D = 44 mm
Tube: Carbontubus

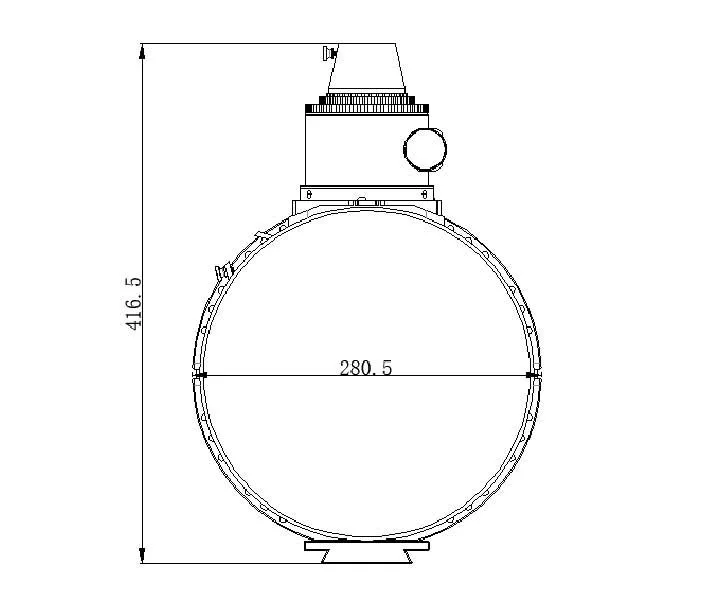

Diameter: 280.5 mm

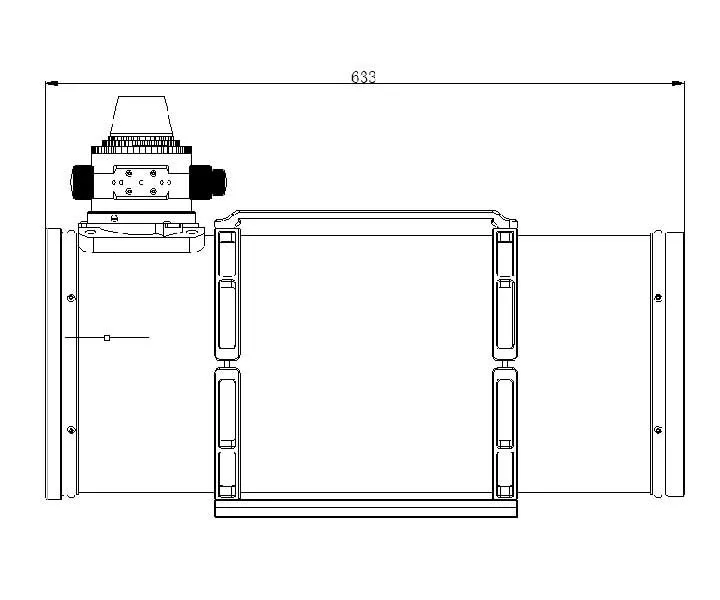

Length: 633 mm
Weight: 8 kg
Eyepiece extension: 3 "gear drive extension with reduction
Camera connection: M48x0.75 external thread
Working distance: 55 mm

♦ Hypergraph 8
♦ CNC clamps
♦ Handle and Losmandy Level prism rail
♦ 1.25 "eyepiece adapter
♦ Carrying case
